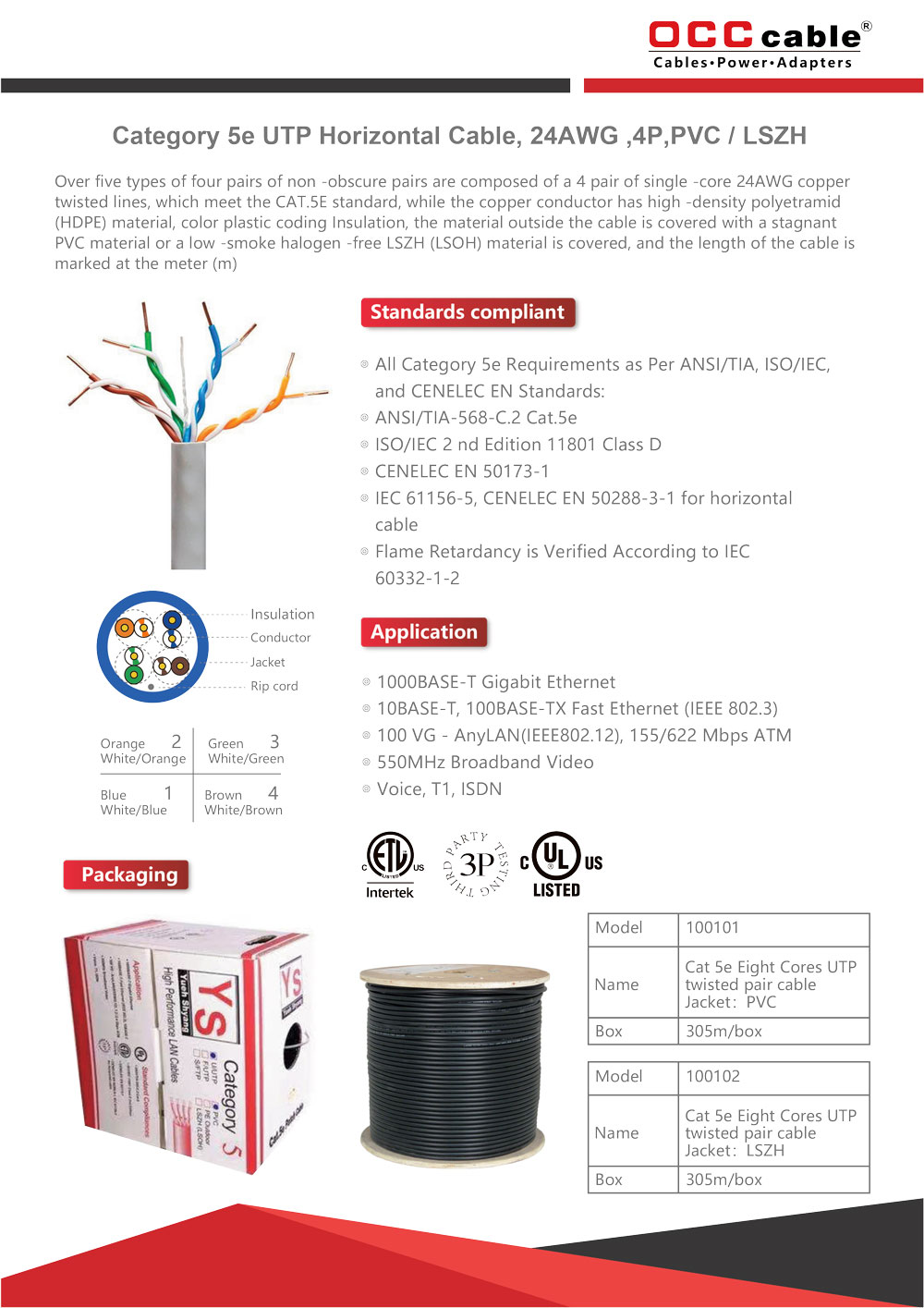

High speed network lan cable UTP Cat5 Cat5elan Cable indoor outdoor

Model No.: 100101

Specifications:

· AWG: 24 AWG

· Gigabit Ethernet: 1000BASE-T

· Ethernet : 10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)

· ATM: 100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM

· Broadband : 550MHz Broadband Video ,Voice, T1, ISDN

· Horizontal cable: IEC 61156-5, CENELEC EN 50288-3-1 for horizontal cable

· Verified: Flame Retardancy is Verified According to IEC 60332-1-2

Key Features:

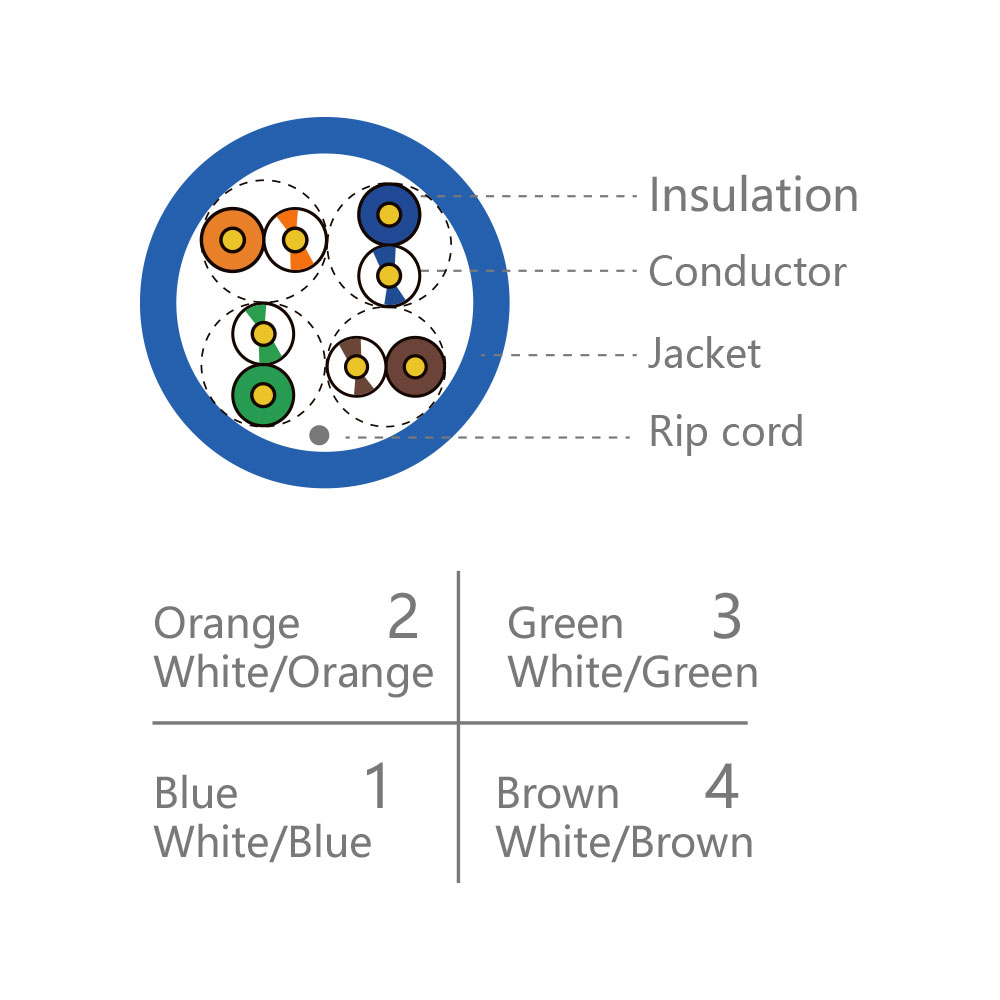

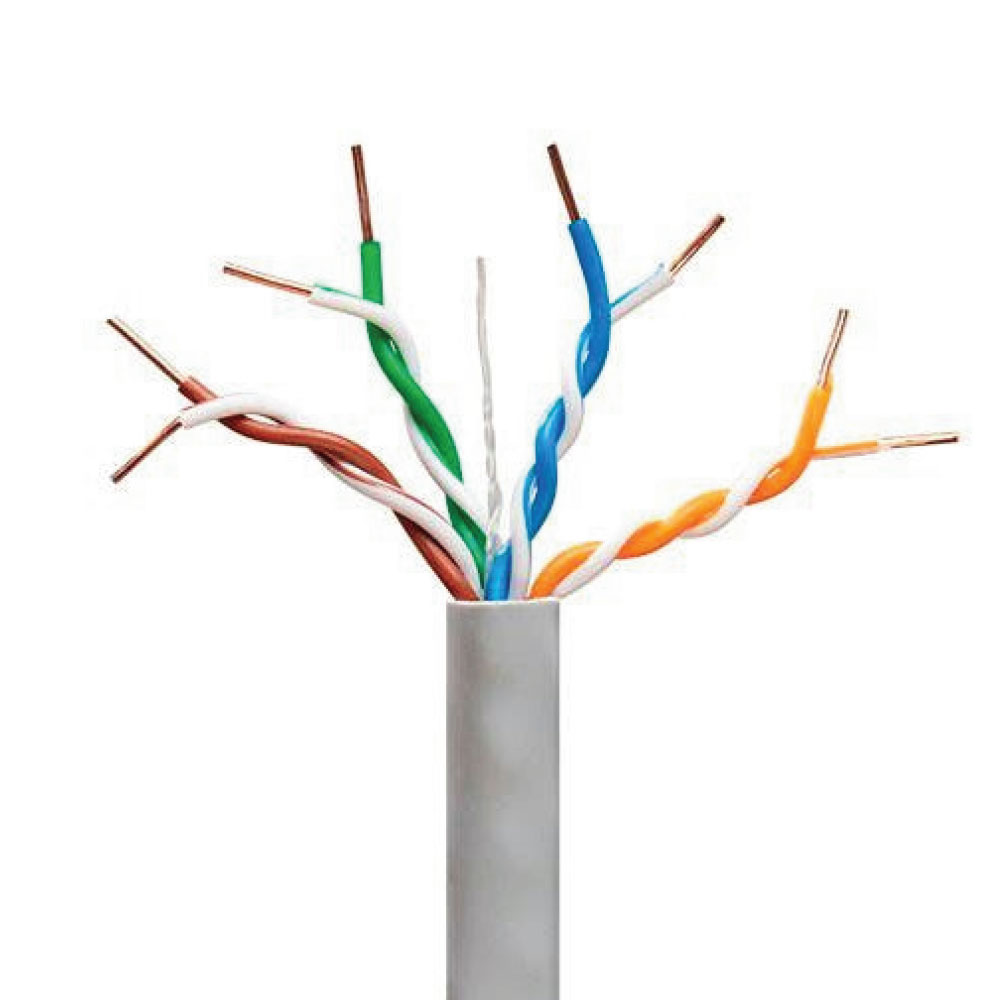

· Cat 5e cable is 24 AWG with 4 pairs (8 conductors).  Suitable for 1 and 2.5 Gigabit (2.5GBASE-T) speeds up to 328 feet.  Bandwidth tested up to 350 MHz.  Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

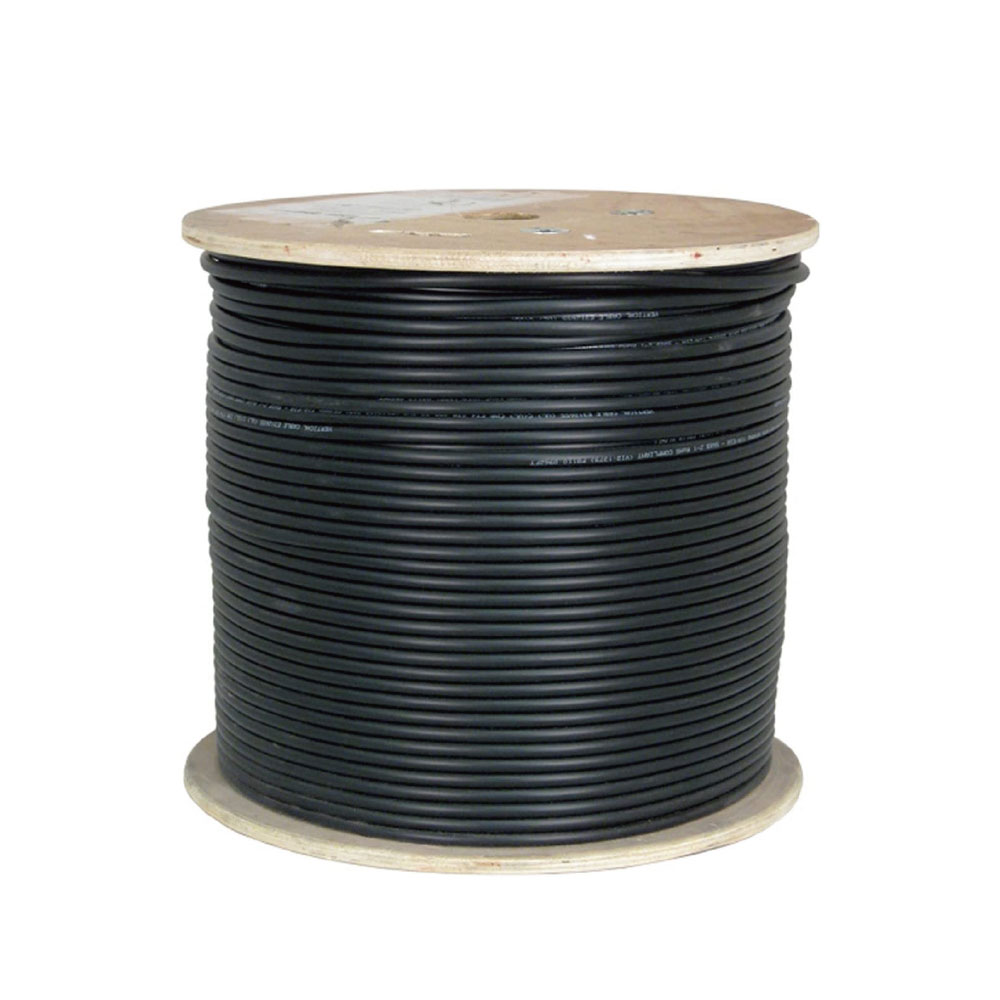

· 1000 feet (305 meters) comes conveniently pre-spooled in a tangle free, easy pull box so you don’t have to worry about getting behind on your next job.
